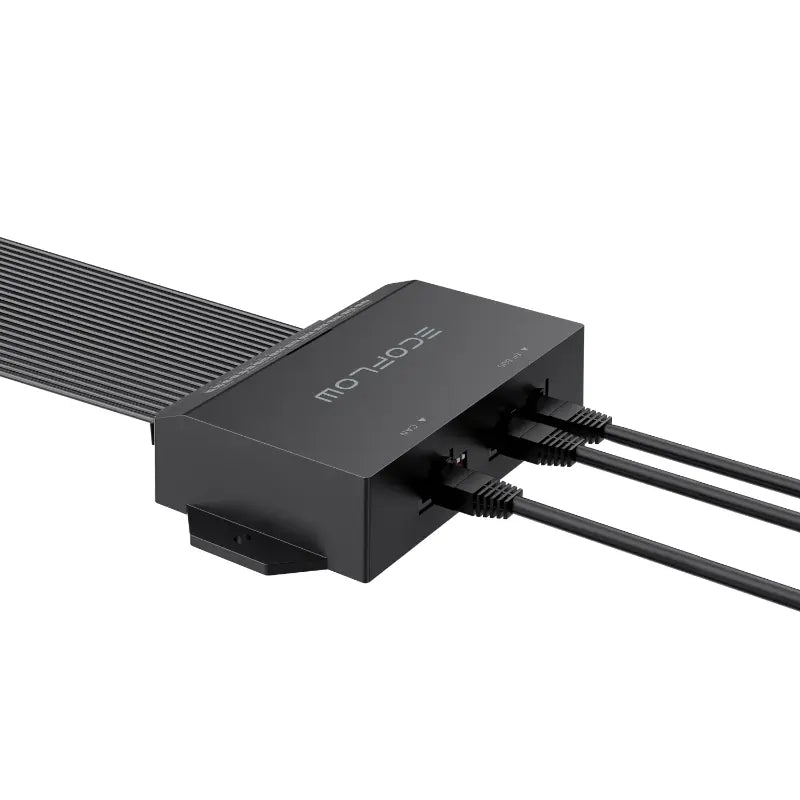

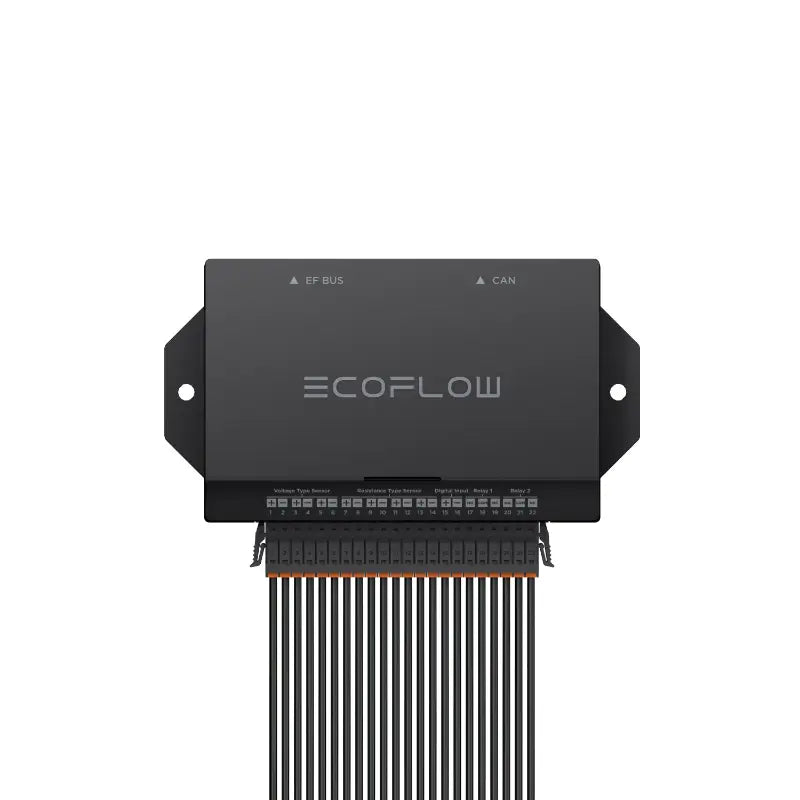

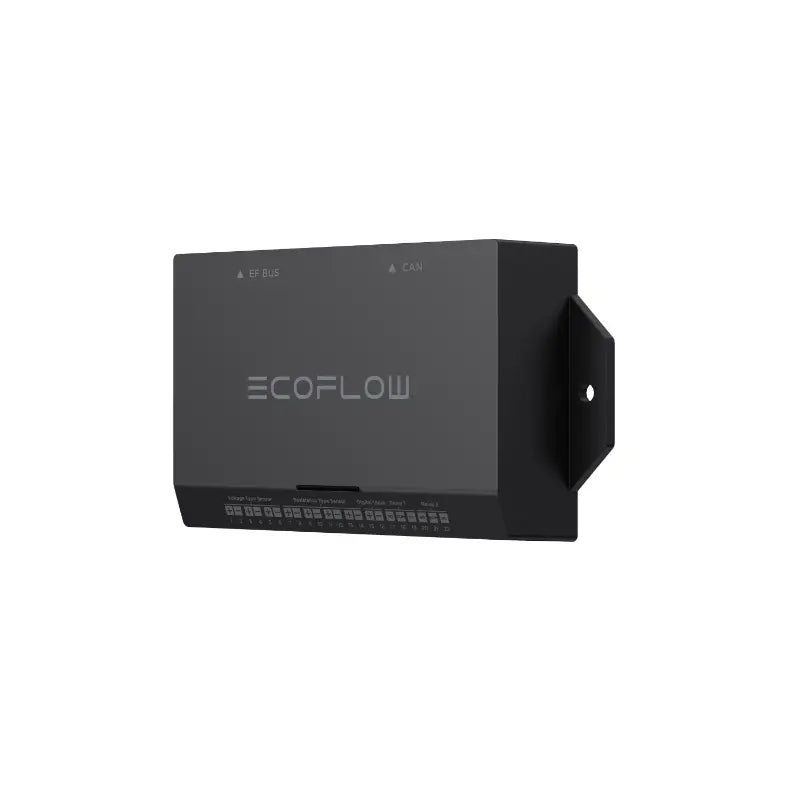

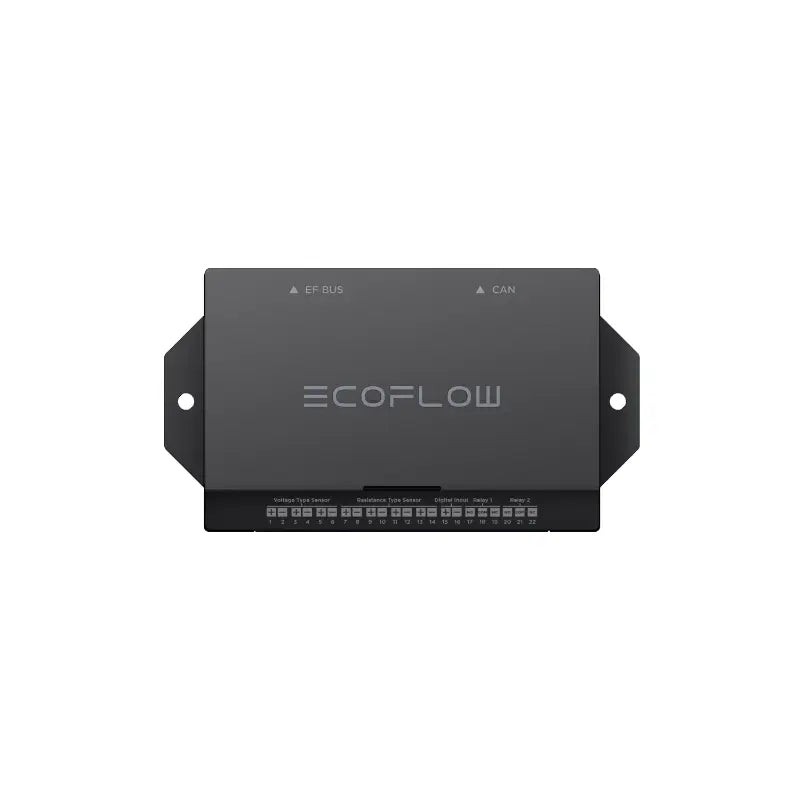

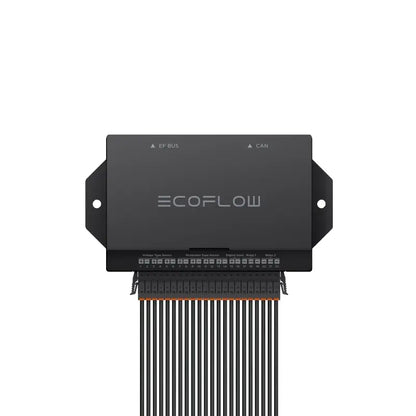

Ecoflow Power Link

DESCRIPTION

The EcoFlow Power Link connects your campervan or RV’s power system to a central monitor like the EcoFlow PowerInsight or Console. It simplifies monitoring by integrating data from sensors and smart panels, allowing you to track voltage, resistance, and temperature levels easily through the EcoFlow app.

SPECIFICATIONS

• Dimensions (H × W × D): 74 × 137 × 31 mm (2.9 × 5.4 × 1.2 in)
• Net Weight: 0.12 kg (0.26 lb)
• Operating Temperature: -25°C to 50°C (-13°F to 122°F)
• Storage Temperature: -25°C to 70°C (-13°F to 158°F)
• IP Rating: IP20
• Voltage-Type Sensor Inputs: 3
  • Measurement Range: 0–35V⎓
• Resistance-Type Sensor Inputs: 3
  • Measurement Range: 10 Ω – 100 kΩ
• Digital Input Channels: 1
• Relay Outputs: 2
  • Maximum Voltage: 42.4V⎓
  • Maximum Current: 1.75A
• Warranty: 5 Years


ADDITIONAL INFORMATION

• Compatible with 5kVA and 3.6kW EcoFlow Power Hubs
• Monitor with EcoFlow PowerInsight, Power Kit Console, and App
• Calibration process simplified for time saving set up
• Hideaway terminal block with simple connection process
• Connect 2x Power Links to a single Power Hub
