ECOFLOW Distribution Panel

DESCRIPTION

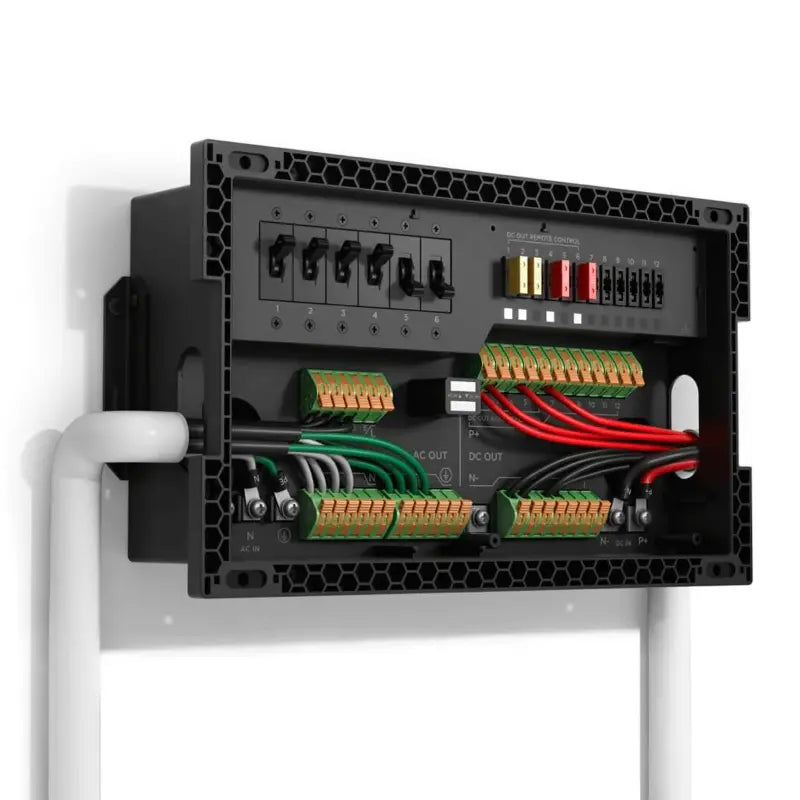

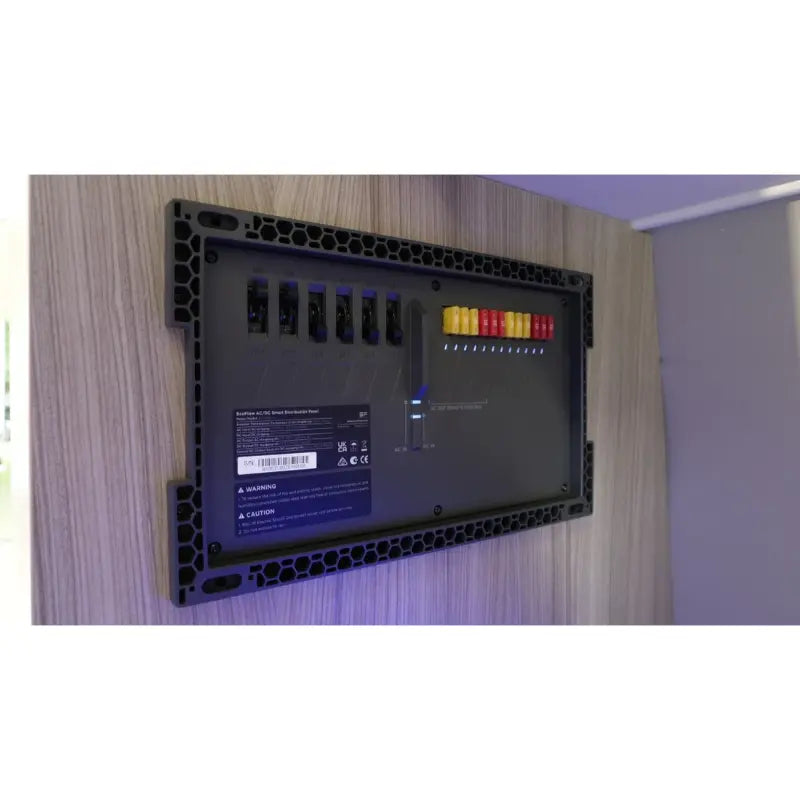

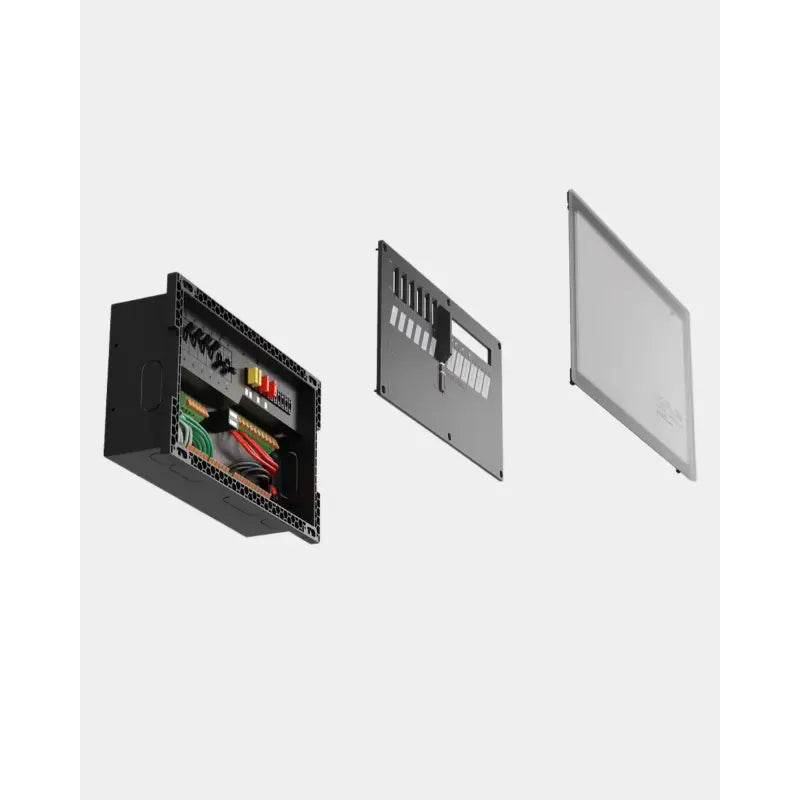

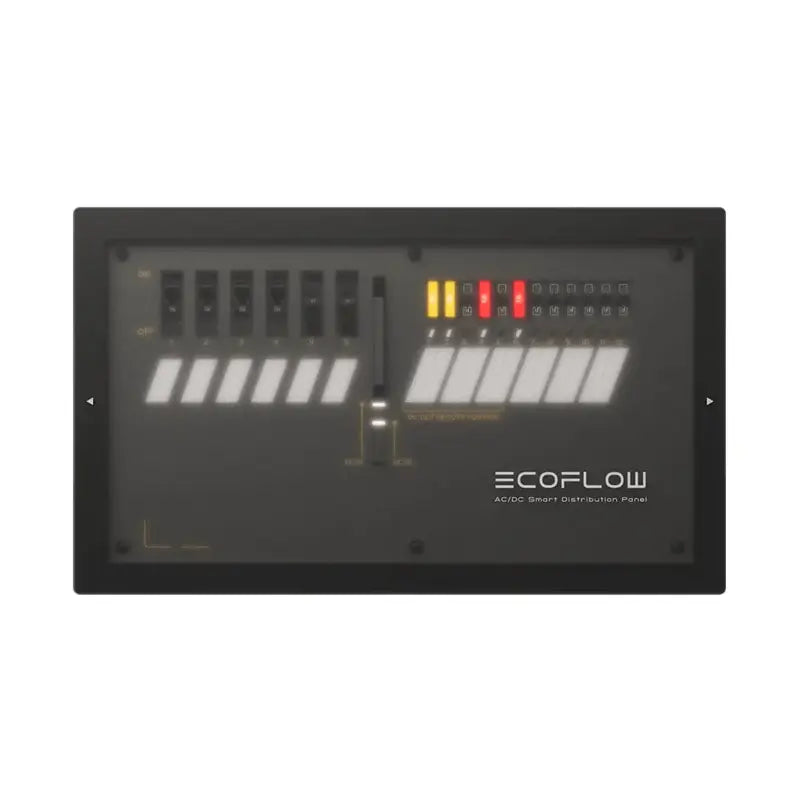

The EcoFlow Power Kits AC/DC Smart Distribution Panel is a compact, all-in-one solution designed to streamline power management in off-grid and mobile setups. It supports both AC and DC outputs, with 6 AC circuits (up to 20A each) and 12 DC circuits—6 of which are controllable via the EcoFlow App or Power Kit Console. With a robust 30A max AC input and 70A max DC input, it ensures efficient and flexible energy distribution. Built with safety in mind, it features IP21 protection and is certified to UL, FCC, and PSE standards, making it ideal for reliable, user-friendly energy control in any environment.

SPECIFICATIONS

• Model: Power Kits AC DC Smart Distribution Panel
• Dimensions: 211 x 353 x 99 mm (height x width x depth)
• Weight: 2.6 kg
• Protection Level: IP21
• Tests and Certifications: UL, FCC, PSE
• Operating Temperature (°C): -25 °C to 60 °C
• Main Entry AC: 30A Max, 120V, 3600W
• Main Input DC: 70A Max
• AC Output: 6 positions, 20A Max each
• DC Output: 12 DC positions total (6 controllable via Power Kit Console & EcoFlow App)


FEATURES

• Safe power distribution
• Easy installation
• Customize your own power
• Track your energy
